Windows

Choose your A-FOLD prefabricated house windows

The current generation of PVC profiles we use are among the best performing on the market.

They are attractive, extremely resistant and require only minimal maintenance, being the best material for windows and doors. The hardware used increases the strength of the window and the safety of your home.

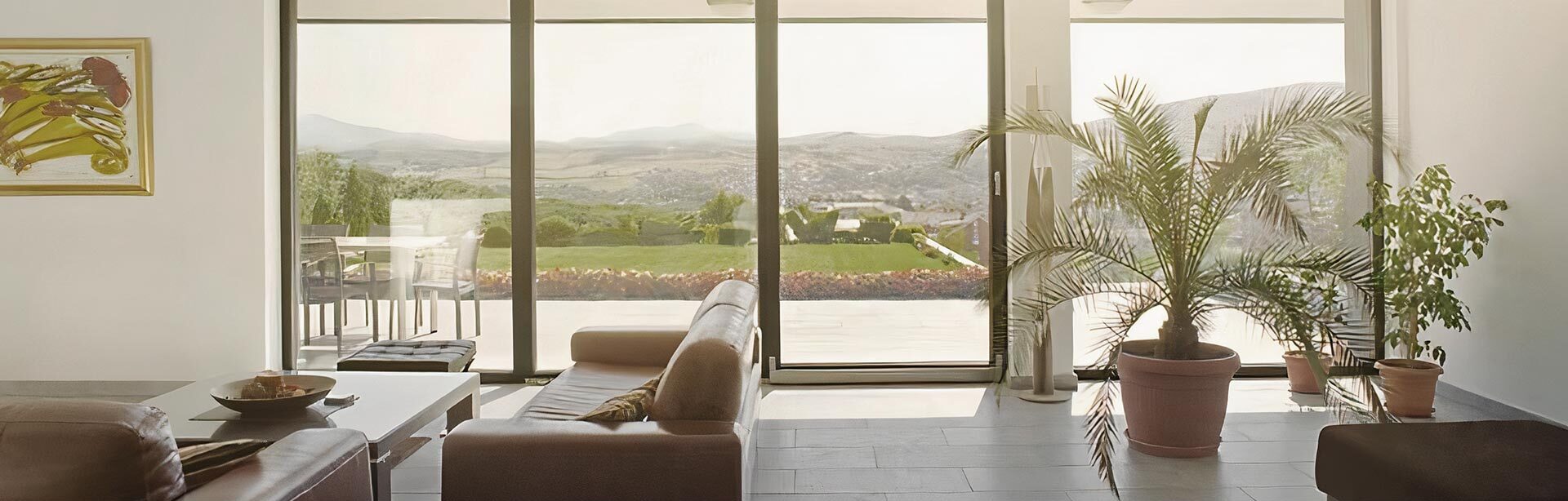

Prefabricated houses windows

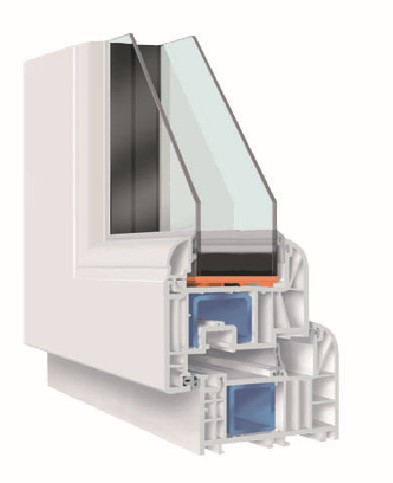

Window with 73 mm profile

This  is a system with five chambers that stands out both for the robustness given by the construction depth of 73 mm with increased reinforcements, and through the thermal and acoustic insulation properties superior to other pentacameral systems.

Technical specifications

  • Construction depth of the profile: 73 mm
  • 5 chambers for thermal insulation and phonic protection.
  • Thermal insulation profile: U F= 1.2- 1.3 W /m2K
  • Soundproofing 48 dB from outside noise
  • Theft resistance Class 2 (DIN V ENV 1627)
  • Estimated lifespan 50 years
  • Double seals integrated in the manufacturing process (weldable)
  • lnsulating glass compatible between: 24 mm and 44 mm (2 or 3 glass plates)

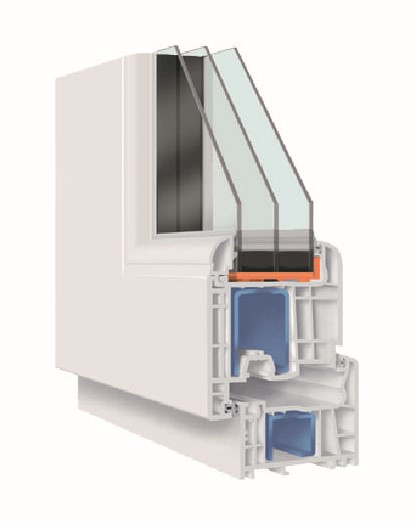

Window with 82 mm profile

 This is a six-chamber system which represents one of the most advanced technologies currently available in the sector of PVC frames. The construction depth of 82mm and the reinforcements with generous dimensions, and also the thermal and acoustic insulation properties obtained through the third gasket, bring this profile to the top of the sector performance.

Technical specifications

  • Profile bluEvolution class A on the external wall thickness of 3 mm
  • Available in the 6 chamber acoustic and thermal insulation variant
  • Acoustic insulation 48 dB from external noise
  • Construction depth of the profile: 82 mm
  • Thermal insulation of the profile: Uf = 1,142 W I m2K with standard reinforcement
  • E Uf=0.94 W/m2K con Thermtec
  • Theft resistance Class 2 {DIN V ENV 1627)
  • Estimated lifespan 50 years
  • Galvanized steel treated armor of minimum 1.5-2 mm
  • lnsulating glass c om pa tib le: 44 mm {2 or 3 panes of glass}

Sliding door (Optional)

The sliding doors save space and the use of optimal use, because the window does not open inside the room. The mechanism is operated without intervention via the handle. The sliding PVC door system is ideal for closing medium and large sized windows, provided with excellent wind and water tightness results (the some as a casement window), acoustic insulation and tightness.

Technical specifications

  • Dimension cm 300×215
  • Profile bluEvolution class A on the external wall thickness of 3 mm
  • Available in the 6-chamber acoustic and thermal insulation variant
  • Acoustic insulation 48 dB from external noise
  • Construction depth of the profile: 82 mm
  • Thermal insulation of the profile: Ut = 0,96 W/m2K with standard reinforcement
  • Theft resistance C/ass 2 (DIN V ENV 1627)
  • Estimated lifespan 50 years
  • Galvanized steel treated armor of minimum 5-2 mm
  • lnsulating glass compatible: 44 mm (2 or 3 panes of glass)

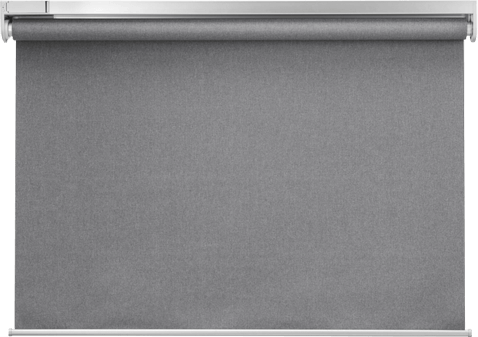

Roller blinds (OPTIONAL)

The plain color roller blinds create an intimate environment by filtering the light and protecting from prying eyes.

Available with chain movement. Made entirely to measure, it will adapt to your fixtures.

Made with a polyester fabric, the blackout canvas features modem and elegant colors that do not change with exposure to sunlight.

The blackout roller blind creates total darkness when the canvas is lowered.

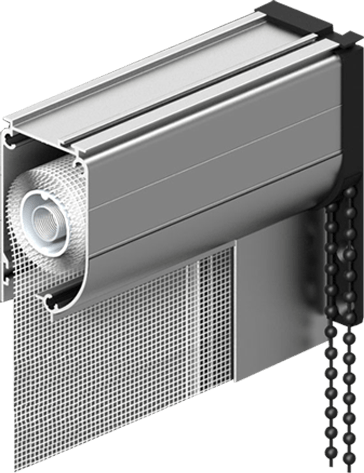

Mosquito nets (Optional)

Mainly, mosquito nets have the practical purpose of preventing the penetration of insects.

The advantages offered by our mosquito nets are:

  • internal/external ventilation,
  • visibility towards the outside with ecological materials.

The simple maintenance and adaptability to the assembly configuration allow the permanent exchange of air between the internal and external ventilation of the environment.
